This is a beginner level kit and should take between 10 to 30 minutes to complete.
This passive multiple kit is as simple as it gets, plug in a wire to create multiple passive connections. 1 in, many out!
If this is your first kit, congratulations! Soldering is a really valuable skill to have in life, but like most things only gets better with practice and experience.
Please tag and share your first builds with us on social media @rakit-kits so we can all bask in the freshly soldered glory.
There are a lot of small components included in the kit so please open the packaging carefully and check that all parts are present and correct using the parts list before you start.
| PCB | 1 |
| Front Panel | 2 |
| 3.5mm Mono Jacks | 8 |
| Mono Jack Nuts | 8 |
| M3 Screw | 2 |

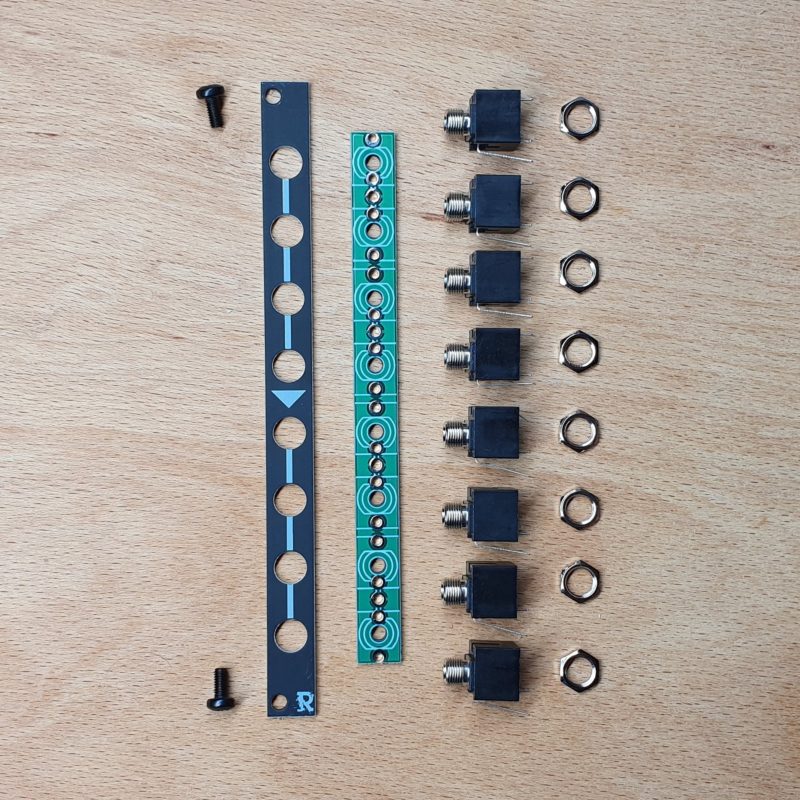

Check your parts!

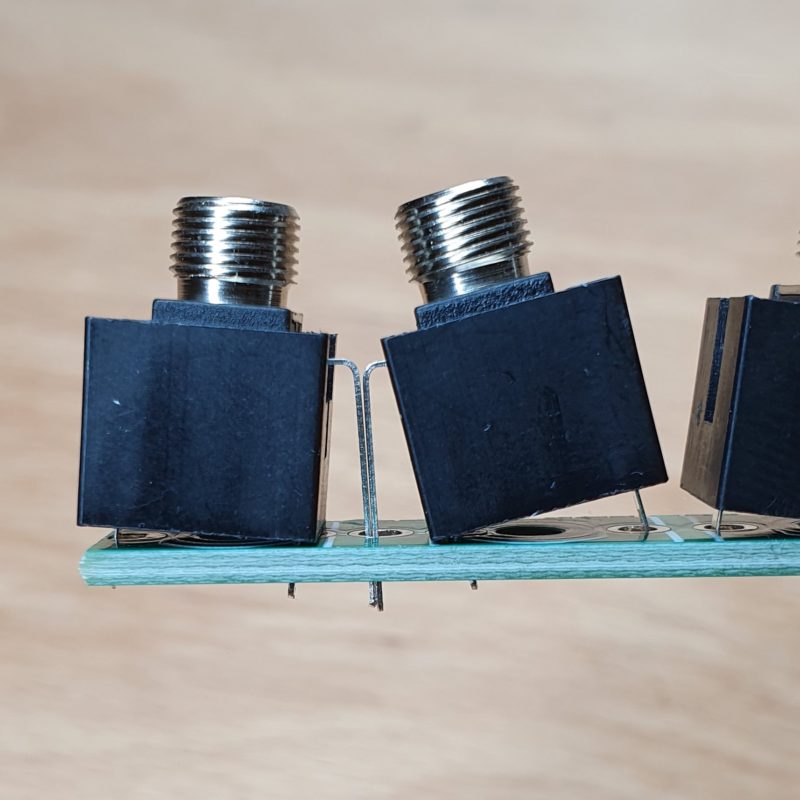

Insert jacks in pairs into the PCB.

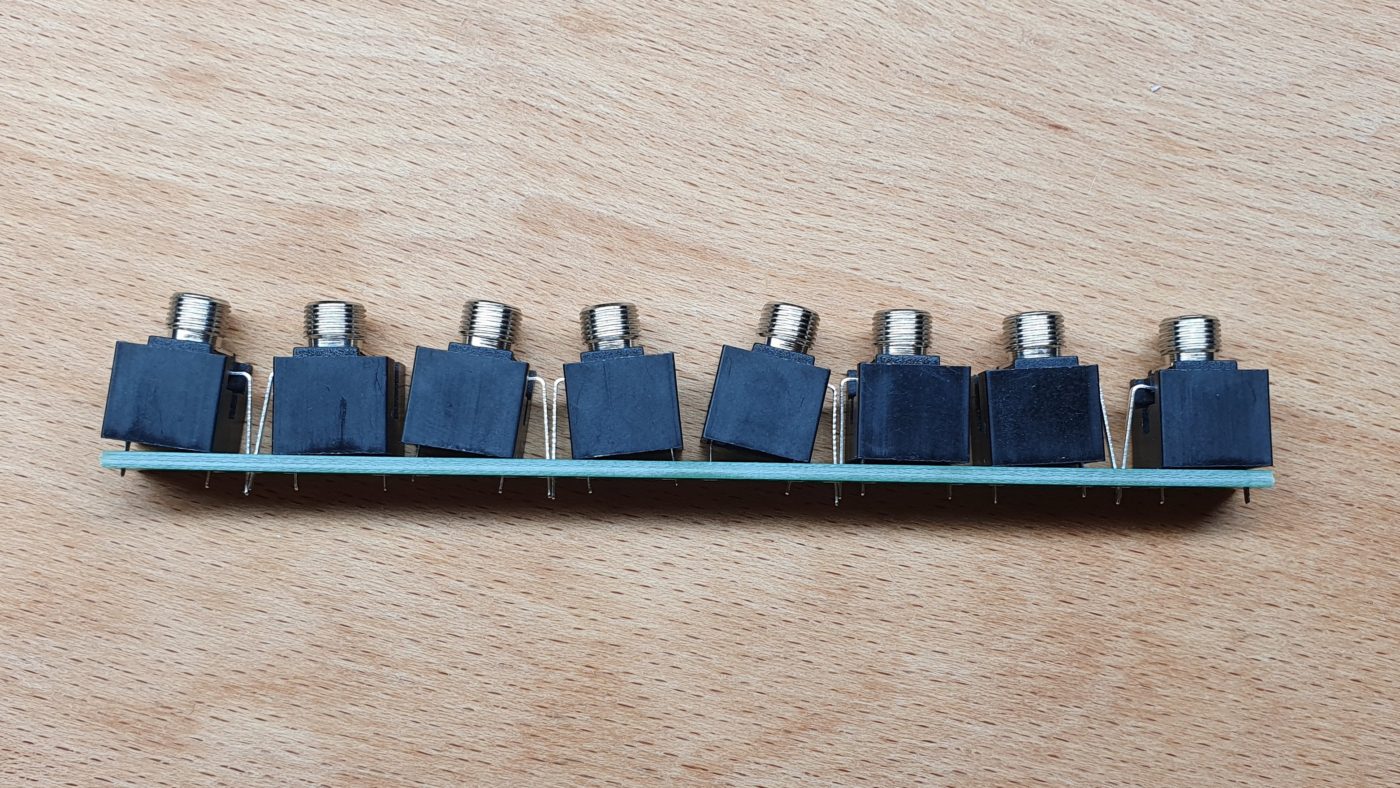

All the jacks!
Carefully push the front panel onto the jacks, keeping the PCB attatched.

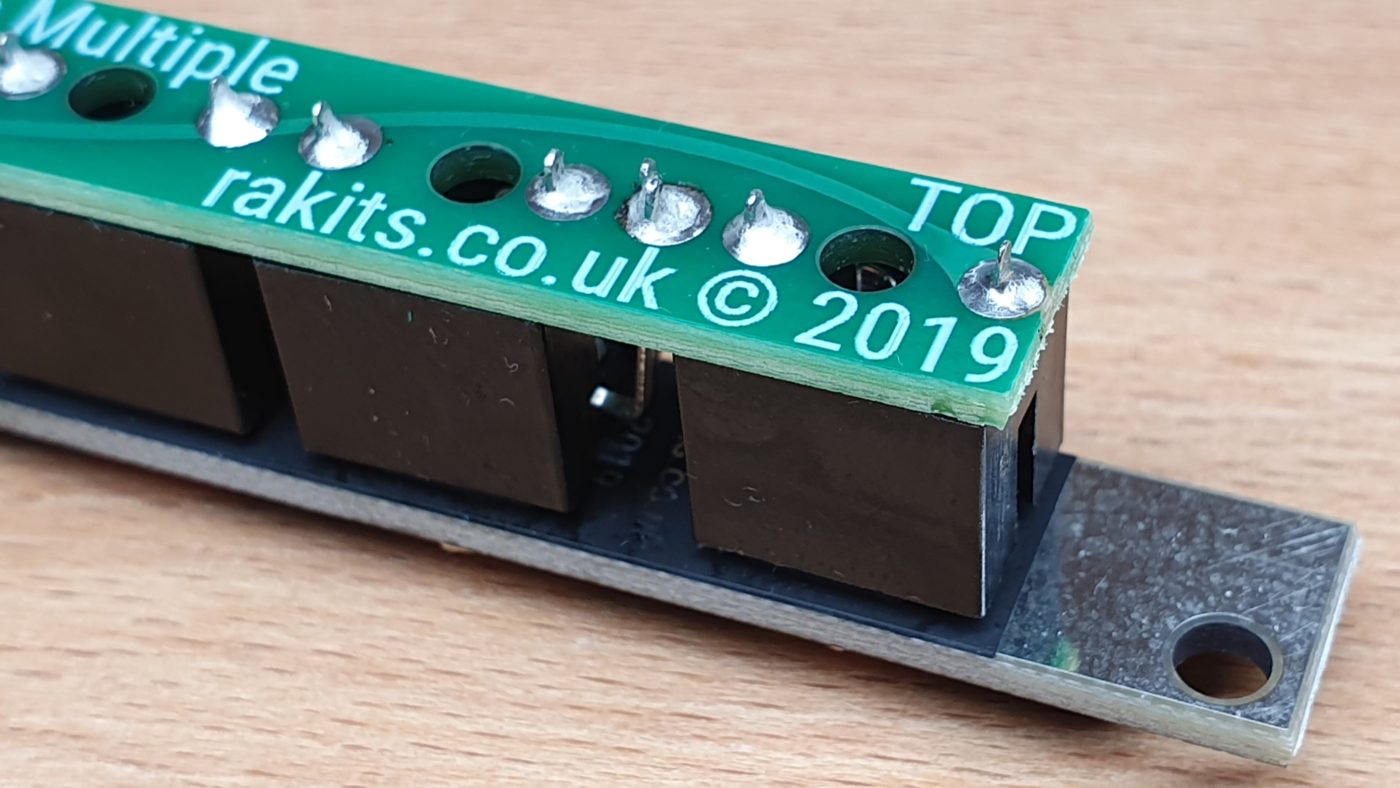

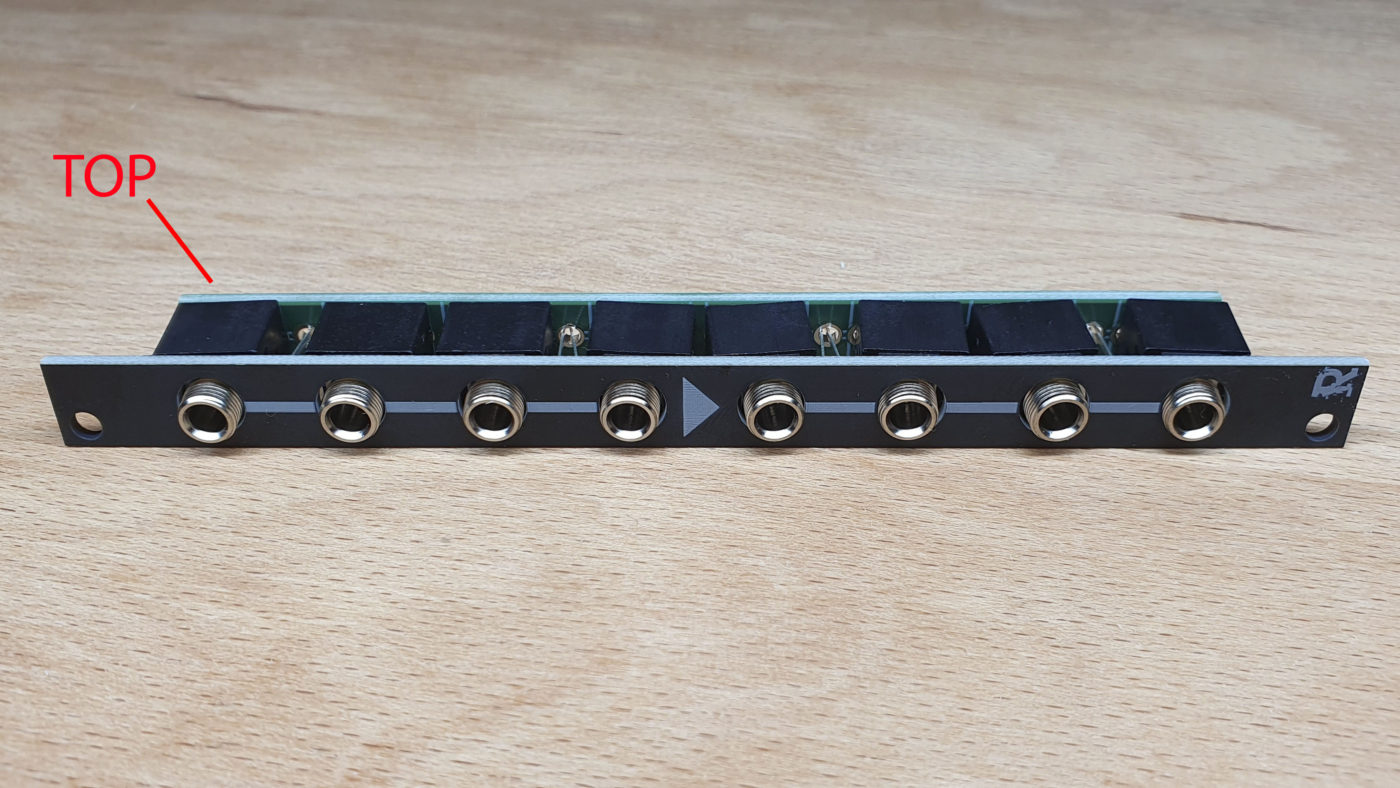

Pay special attention to the orientation of the back and front panel, the green PCB has the TOP marked.

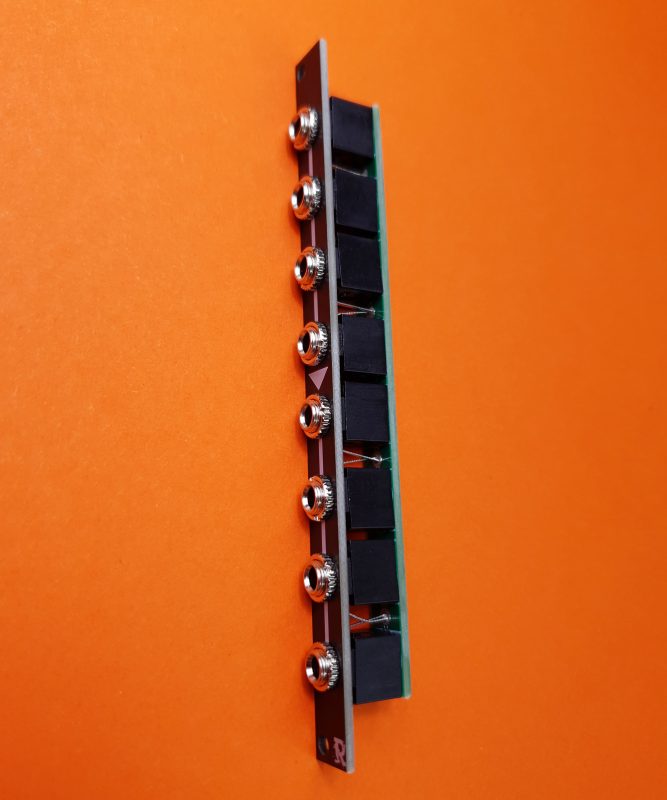

Rear view, nearly there.
Assemble all the nuts onto the jacks, taking care to keep the PCB attached.

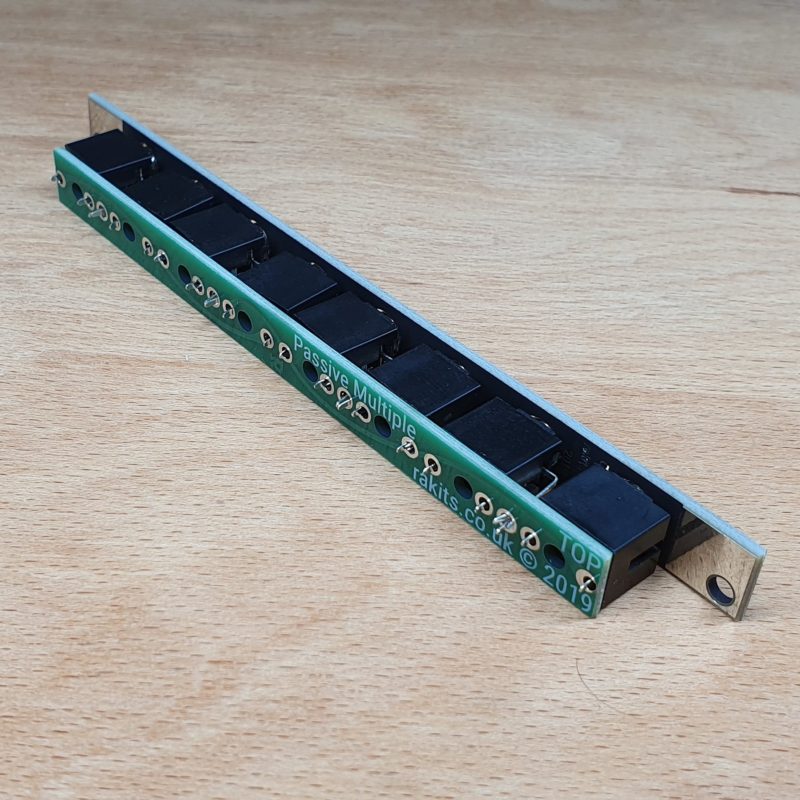

Solder all the connections.
If in doubt check out our soldering tutorial.

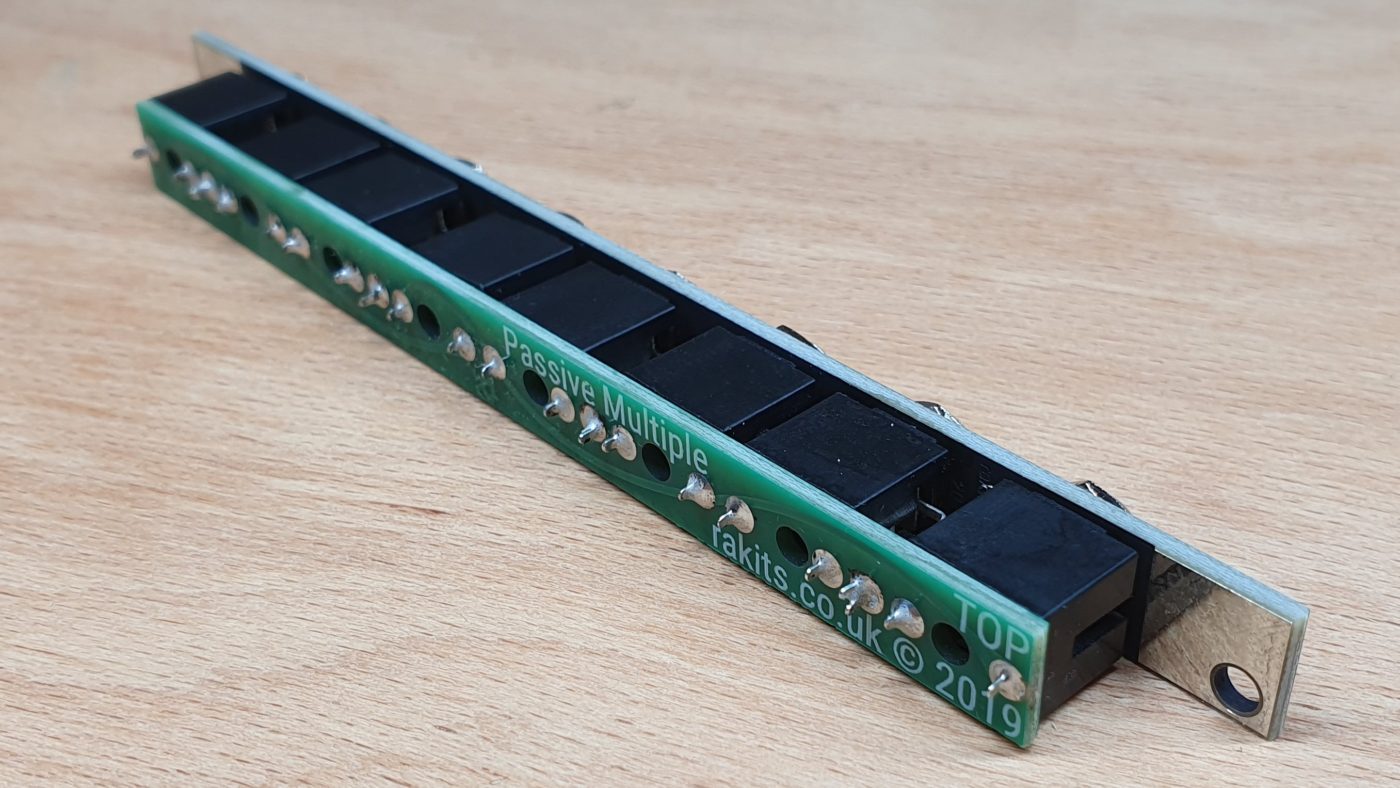

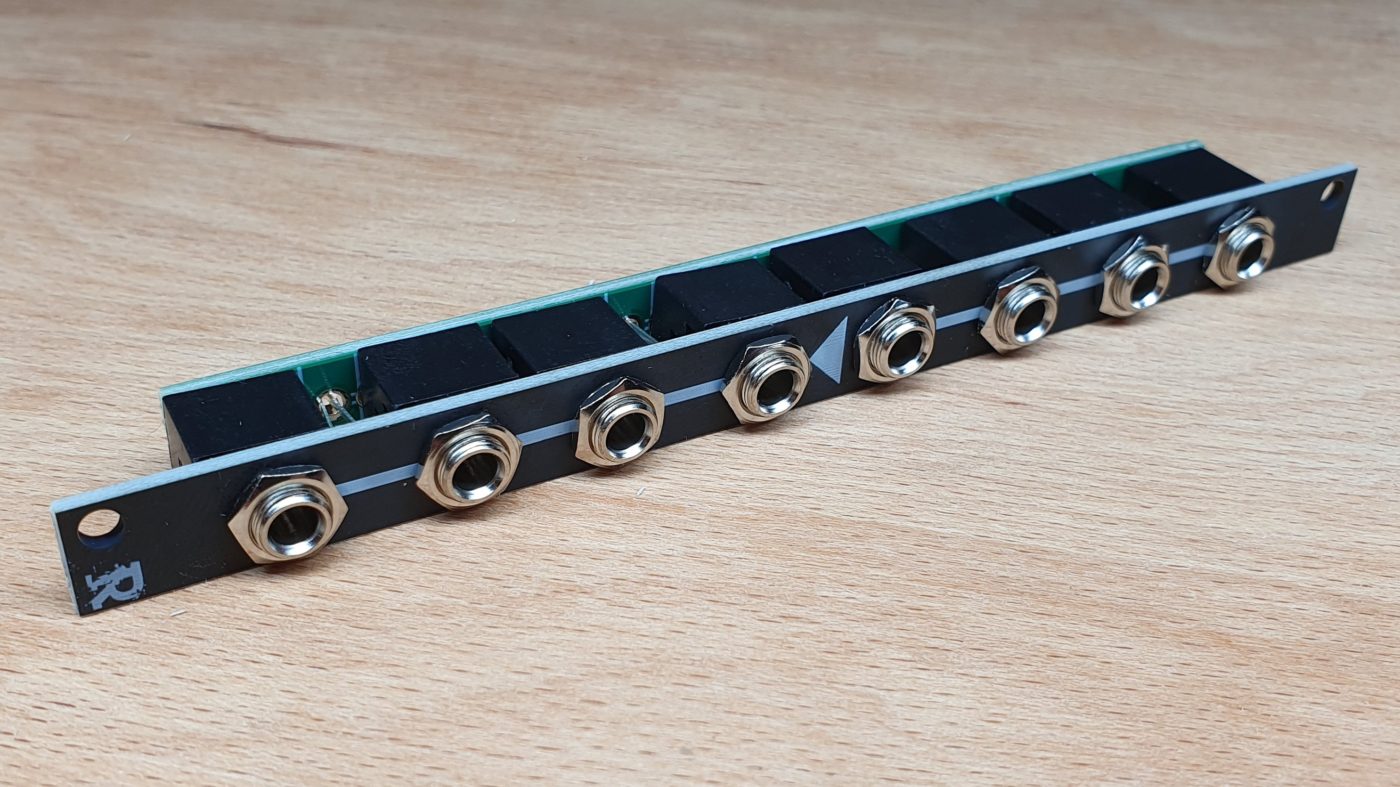

Freshly soldered jacks.

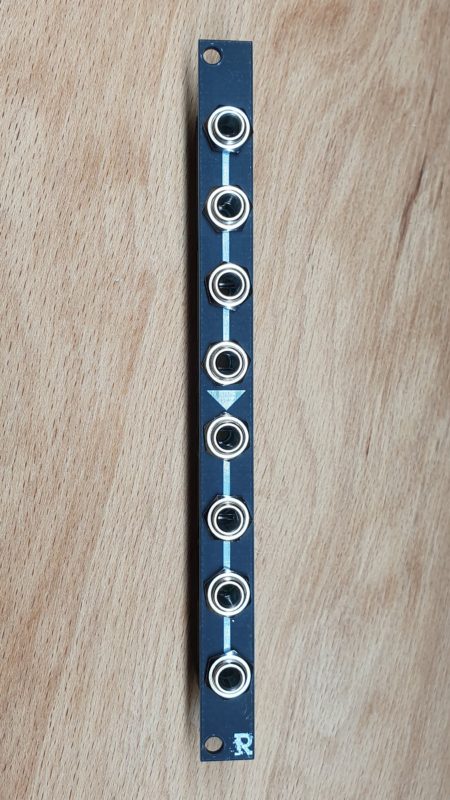

Finished! Install into your modular and get patching!
