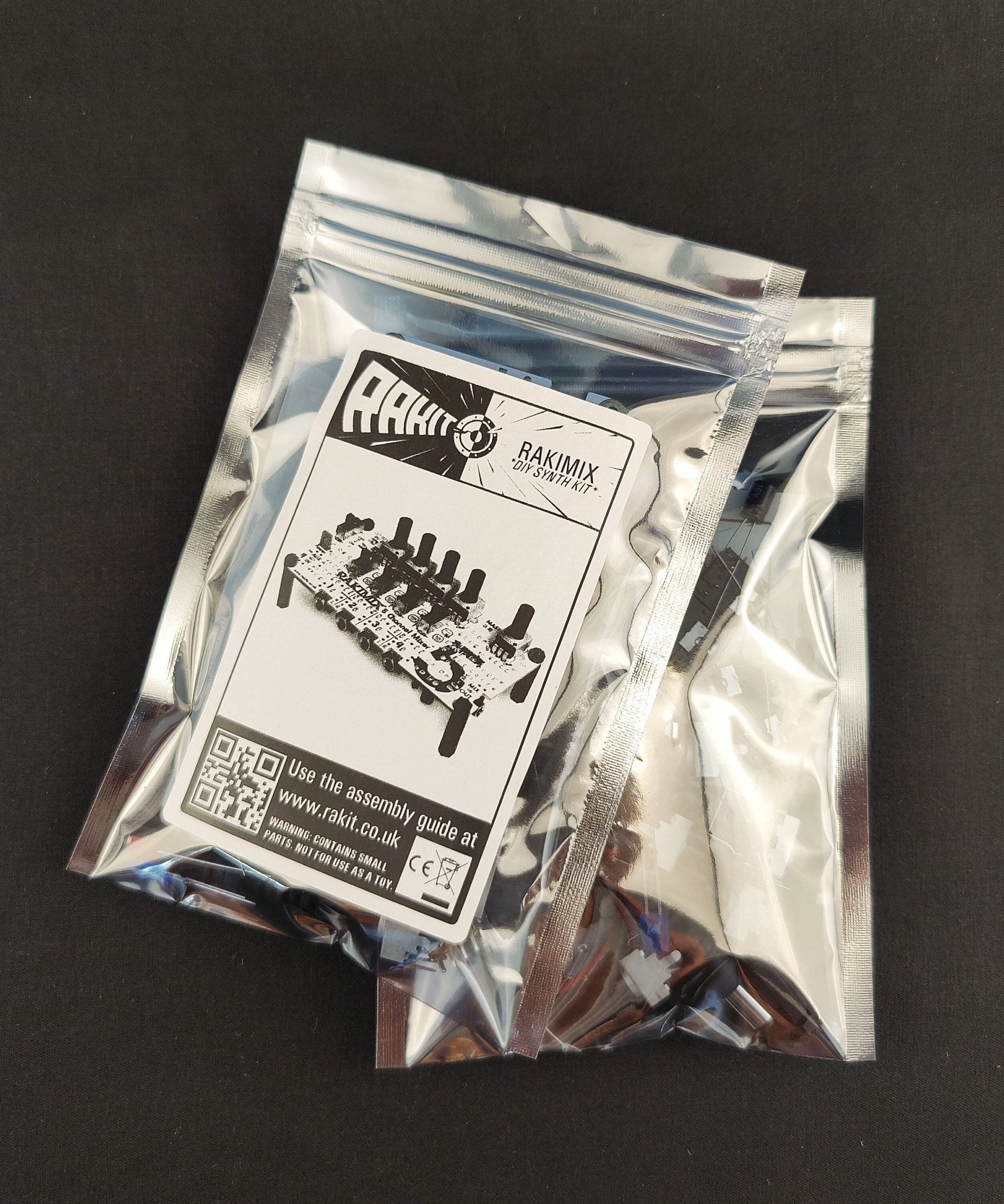

Rakimix 5 Channel Mixer Kit

Rated 5.00 out of 5 based on 6 customer ratings

(6 customer reviews)

£22.99 – £26.47

The Rakimix is a simple but proficient mixer with 4 controllable channels and one auxiliary channel. The auxiliary channel can be used to daisy chain with another Rakimix or any typical mono audio source. This is an intermediate level DIY kit, the perfect project for anyone with a spare hour on their hands!

To find out more please read the full description below…

Features Include:

Easy To Use Level Controls…

Level: Channels 1-4

Each channel has a level control which ranges from off (fully anti-clockwise) to +10dB gain (fully clockwise).

Mute: Channels 1-4

Each channel has a mute switch which can be
useful to keep a level setting but still mute the sound on an individual channel.

Master Level

The master level control is used to adjust the level of channels 1-4 but does not affect the auxiliary input.

DAISY CHAINING

The Rakimix can be daisy chained with other Rakimixers to create a larger channel count mixer.

Using The Auxiliary Input

This input can be used with any mono audio signal up to approx 4Vpp, the signal will be buffered and mixed with channels 1-4.

Any level adjustment of the auxiliary input signal should be done on the source device.

Accepts Mono Or Stereo Jack Inputs

4 x Mono, perfect!

.

2 x Stereo, great!

Channel 1 > Tip/Left

Channel 2 > Ring/Right

Channel 3 > Tip/Left

Channel 4 > Ring/Right

1 x Stereo, 2 x Mono, outstanding!

Channel 1 > Tip/Left

Channel 2 > Ring/Right

Powering The Rakimix

Option A: Get yourself a pp3 9V battery to use with the battery-barrel jack connector supplied in your kit for a mobile device. You can add a battery to your kit using the drop down menu options.

Option B: Should you wish to use your own power supply, please ensure it meets the following specifications:

+8V to +12V, Centre positive 2.1mm (centre) x 5.5mm (outside)

kit contents

PCB	1
100k Potentiometers	4
10k Potentiometer	1
2x5mm LED	1
SPDT Slide Switch	5
NE5532 Op Amp	2
3.5mm Stereo Jacks	6

100k Resistors	4
10k Resistors	8
100R Resistors	2
33k Resistors	1
3.3k Resistors	1
Stand-offs	4
Nuts	4

100uf Electrolytic Capacitor	5
10uf Electrolytic Capacitor	1
Power Jack	1
9V pp3 Battery to Barrel Jack	1
100p Ceramic Capacitor	2
100nf Ceramic Capacitor	2
Schottky Diode	1

Weight	N/A
Dimensions	140 x 100 x 22 mm
Add Solder + £0.99	Yes, No
Add Battery + £2.49	Yes, No
